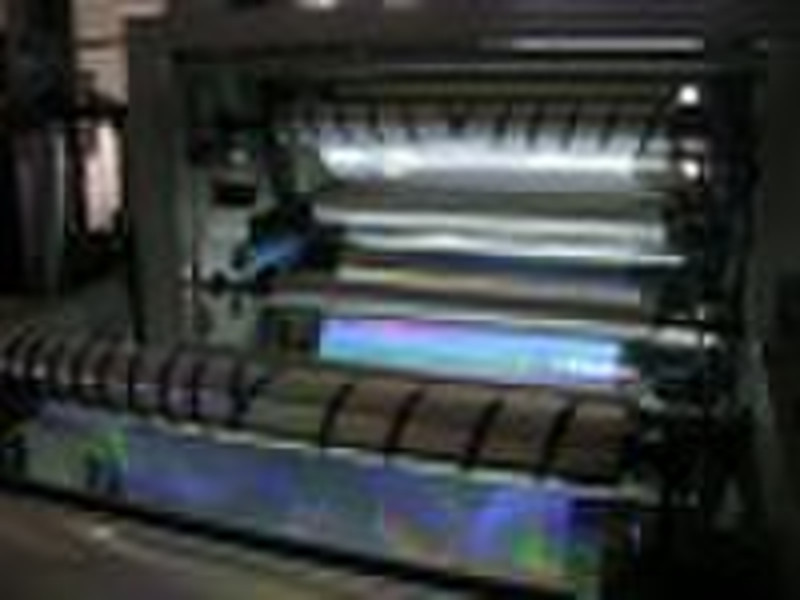

800mm Metalliezed Pet Hard Hologram Machine

Design Principles of YM-MYM800 Hard Embosser The frame construction is precision-engineered that enables to hard embossing processes with special designed emboss roll at Hardness of Shore D85. 1. Product information Specification Working width: 800mm Emboss material: Metallized BOPET (thickness 12 50mic) Throughput: Max.100m/min Working speed: 10 100m/min Max Roll Diameter: 600mm Power: 90kw Size(L x W x H): 5.6 x3.5 x2.5m Weight: 11 mt Frame construction TIG Welded channel steel and Steel Plate Our machine is designed for holographic films that used for labels, stamping and lamination on various substrates. We guarantee a high degree of accuracy for the finishing process. This can be ensured at the time of purchase. 2. Detailed Pictures 3. The Process of Hard Embossing: The substrate is embossed by passing through a oil heated shim roll and embossing roll. The nickel (Ni) embossed shim is clamped into master roll (as //) and inside master roll rotating heated compliant. The embossed area would be according to the circumference of master roll that maybe 520mm or 615 mm and as wide as the shim affixed to the master roller. The shim is wrapped and clamped around the circumference of the master roll. After embossing, the substrate passes through a tension controlled nip roller and then rewound onto a rewind pneumatic shaft. The hardened adjustable cams on each end of the die roller allow for the lift on/lift off of each embossing impression roller. Specially designed heat-exchange systems can increase/decrease temperature in 30mins from 0 to 160C. 3.CE Certificate hologram machine, hologram equipment, hologram embosser,hologram printer, rotogravure machine
