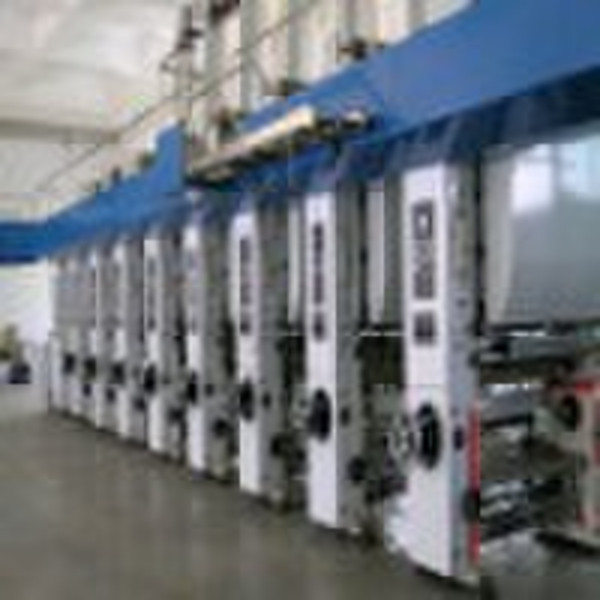

Yiming CE Certificate Holographic Printing Machine

Design Principles of YM-MYMSeamlessHolographic Printing Machine 1. Machine production Main Parameter Max.working width1000mmMax.machineworkingspeed150m/minMax.printingspeed120m/min(Forme:Φ120mm—Φ288mm)Tensioncontrolledmodetension swing arm +tension sensor +variable-frequency motorTensioncontrolledrange3-30Kg/widthoverallTensioncontrolledprecisionerror<=0.2kgTotalpowerAbout70kw(transmission:32kw,UVlightandothers:38kw) PrintingMaterial PrintingPET18 35umOPP,BOPP28 35um HolographicPrintingunit ConfigurationLoadingwithoutaxis,transmissionwithmechanicalaxis,vectorfrequency-convertedmotorSpecificationMotor:5.5kwmadebyRexnordoneset Motordrive:Asakawa5.5kw oneset Printingroller:duetoclient’sproductrequirment DiameterofPrintingShim:Φ120mm-Φ288mm LengthofShimaxially:650mm-950mmSubassemblyofprintingrollerPrintingforce:Max.:500Kgs/widthoveroll Pressurecylinder:Φ80cylinder(Airtac),cylinderrecover,automaticclose&open,pressurecanbeadjusted. Printingrubberroller:Φ150(hardnessshore:75o), EthylenePropyleneDieneMonomerGuided rollerΦ90aluminumalloyroller,anodizingsurface,dynamicbalanceprecision<=2gKnifeunitKniferest:moveswinganglepre&postlifting,fullfunction Knife:grindingblademadebyItaly Pressure:doublecylinder,Φ50X25(Airtac),pressurecanbeadjusted reciprocatingmotion:offsetswingrodInk-supplyingsystem: Circulargluesupplyingsystem Ink tank:stainlesssteel,manualliftingpre-dryingovenLength:about1.4m,blower0.55kw,exhaustfan0.75kw onegroup2. Detailed Pictures Application: With Yiming Know-how on holographic register printing system, YM-ZY1000 can print holographic image on the whole web or registered surface on printed PET film without any hologram master shim.
